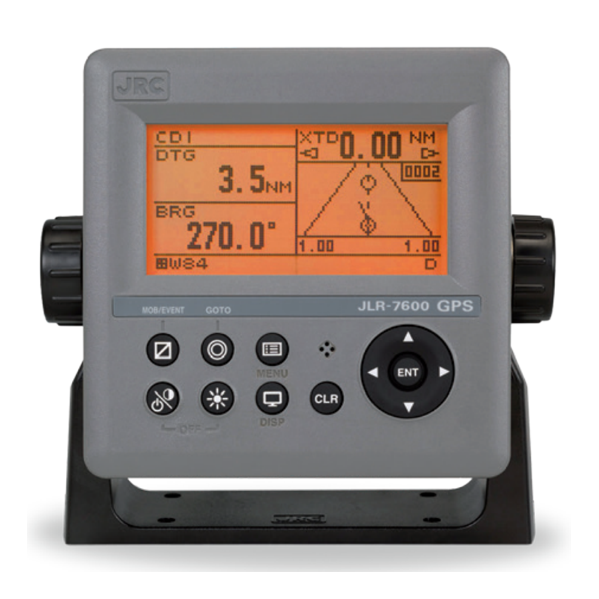

JLR-7600/7900 GPS tæki

Hraðvirkt og nákvæmt GPS tæki fyrir skip og báta sem þurfa nákvæma og stöðuga staðsetningu. Hann notar sama GPS móttakara og stærra tækið JLR-7500 en er með talsvert minni skjá og auðveldara að koma fyrir í minni brúm. Helstu eiginleikar: Skýr og bjartur 4,5” skjár 2 litir á baklýsingu, hvítur og appelsínugulur Handvirk og sjálfvirk misvísun NMEA 0183 inn og útgangar 10,8 – 31.2 v. vinnuspenna Specifiations JLR-7600（GPS） JLR-7900（DGPS） MED approved ✔ ✔ Scanners 4.5-inch monochrome (128 by 64dots) Backlight White and orange LED selectable Dimmer levels Bright, medium, dark, off Memory 1,000 waypoints (including MOB/event), 2,000 track points, 20 routes Route plan 50 waypoints per route Geodetic datum Selection among 47 geodetic datum Magnetic variation Automatic or manual selection Navigation calculation Great circle or rhumb line selectable Alarm Arrival, anchor, XTD, no position fix, speed, trip, HDOP, DGPS Plot function scale 0.125, 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100 NM Interval 1 sec – 60 min (1 sec) or distance 1 – 99.99 NM (0.01 NM) selectable Interfacing Data/power 12-24V DC, serial 3 in/output (RS-422), contract 1 in/output Data 1: serial 1 in/output (RS-485) for data/dimmer sharing Sensor/data 2: serial 1 in/output (sensor) or daisy chain Selectable units Distance/speed: NM/kn, km/km/h, mi/mi/h Height: m/ft/fm Language English, Japanese Power supply 10.8-31.2V DC (optional power supply 100-240V AC), less than 4W 4WSensor type Multichannel (12ch), SBAS (1ch) Multichannel (12ch), SBAS (1ch), DGPS Frequency 1575.42 MHz ± 1 MHz (C/A code) SBAS WAAS, MSAS, EGNOS Accuracy 13m (HDOP 4 SA off), 7m (SBAS) 2dRMS 13m (HDOP 4 SA off), 7m (SBAS), 5m (beacon) 2dRMS Power supply 10.8-31.2V DC, less than 1.5W 10.8-31.2V DC, less than 2.5W NMEA version 1.5, 2.1, 2.3, 4.0 Bit rate 4800, 9600, 19200, 38400 bps Output sentence GGA, RMC, GLL, VTG, GSA, GSV, DTM, GBS, GRS, GST, ZDA, GNS, MSS *1, ALR, BOD, RMB, ACK Output interval 1, 2, 3, 4, 5, 6, 7, 8, 9 sec, off Ambient conditions Operation temperature: -25 to 55°C (sensor), -15 to 55°C (display)Storage temperature: -40 to 70°C (sensor), -25 to 70°C (display)Relative humidity: 0% to 93% non-condensingVibration/EMC: IEC60945 ed.4 compliantWaterproof/dustproof: IP56 (sensor), IP55 (display) JLR-7600 enskur bæklingur
